Toyota Hiace

Intelligent Design for Easy Driving

Intelligent design assures improved control and driving ease at all times. Essential indicators and switches are positioned for maximum visibility and intuitive operation, and the panel-mounted shift lever allows pass-through access from either side of the cabin. Ergonomic seat design contributes to a fatigue-free driving experience on long trips and in stop-and-go city traffic, keeping you refreshed, alert, and focused on the road ahead.

Download the Hiace brochure here

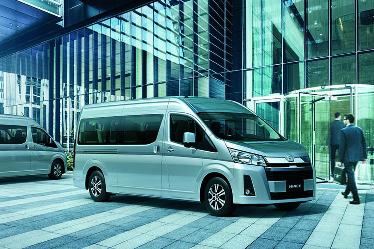

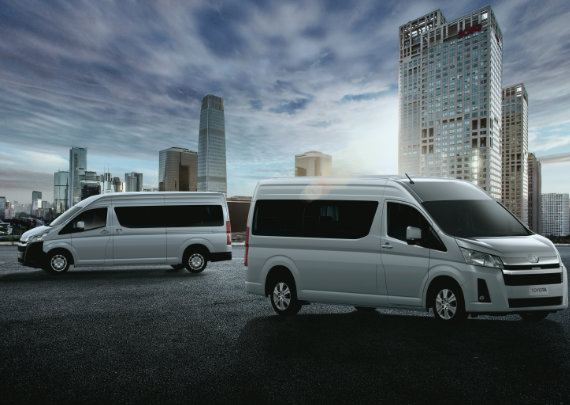

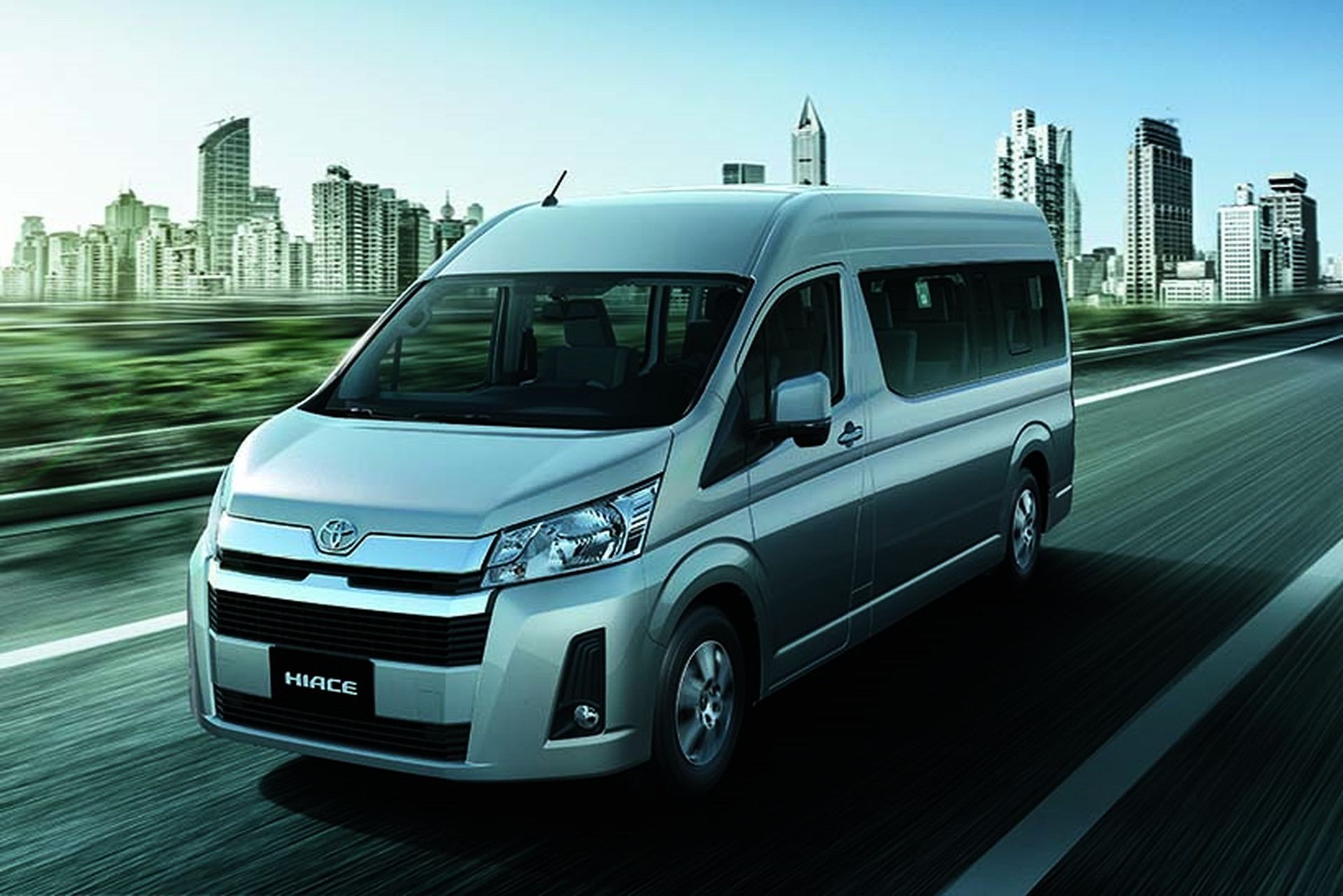

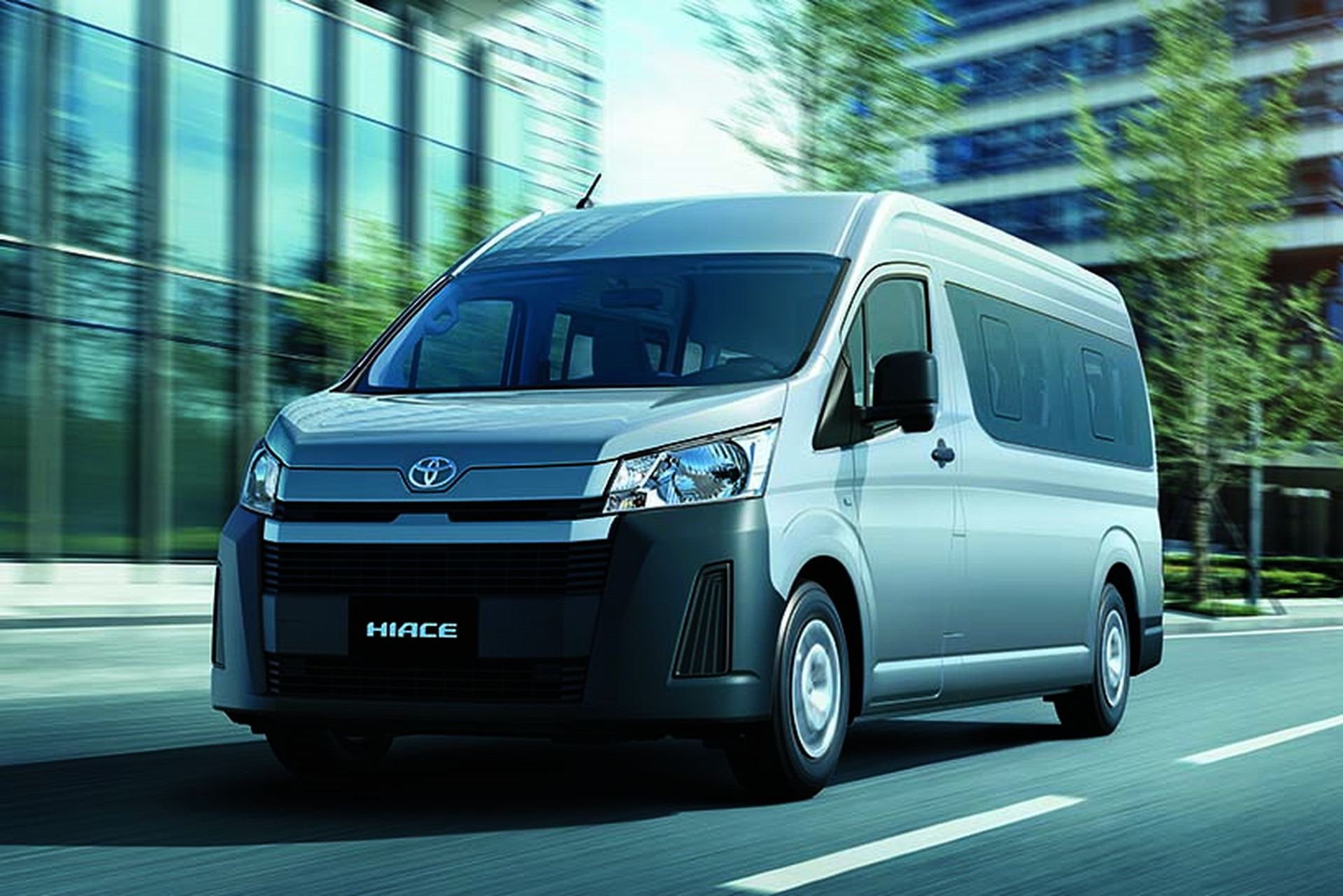

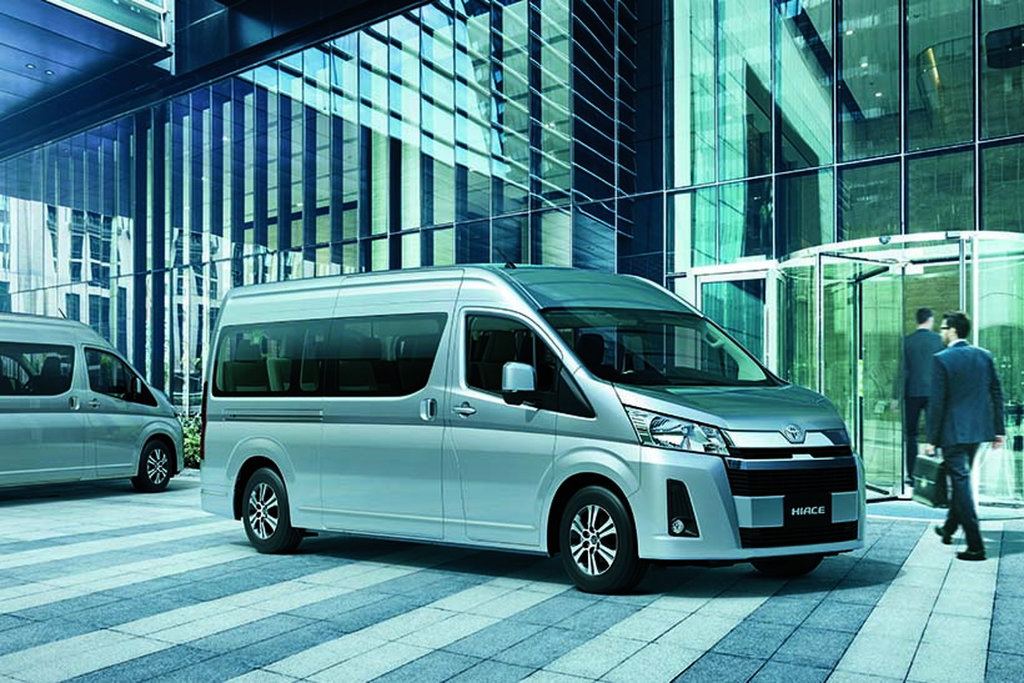

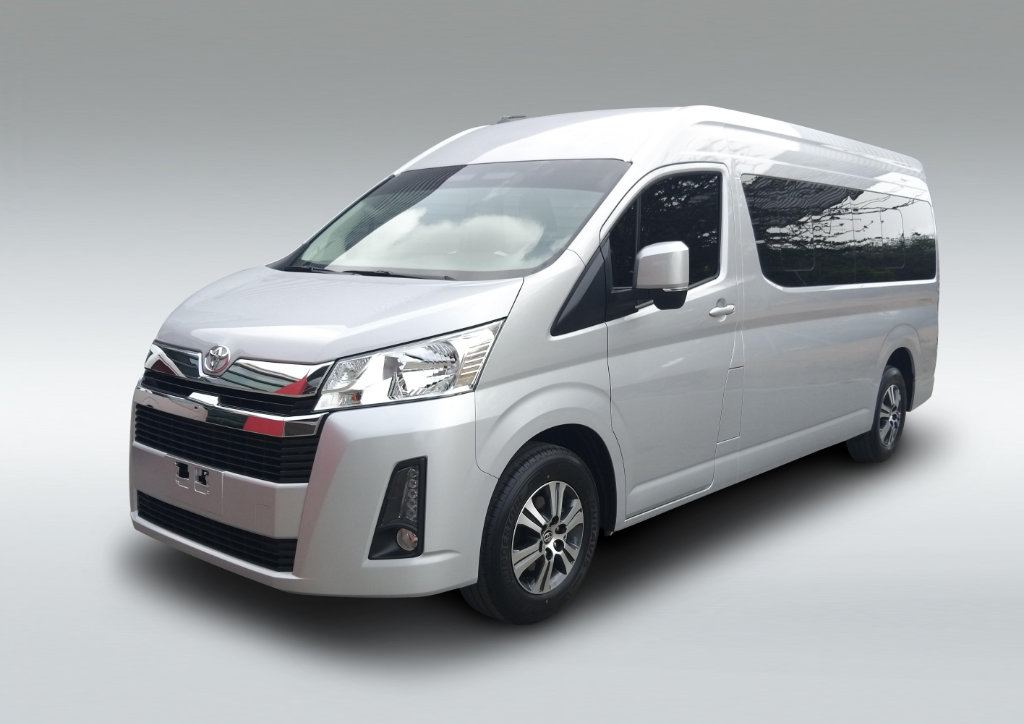

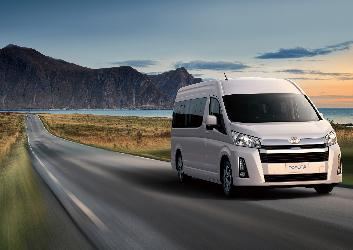

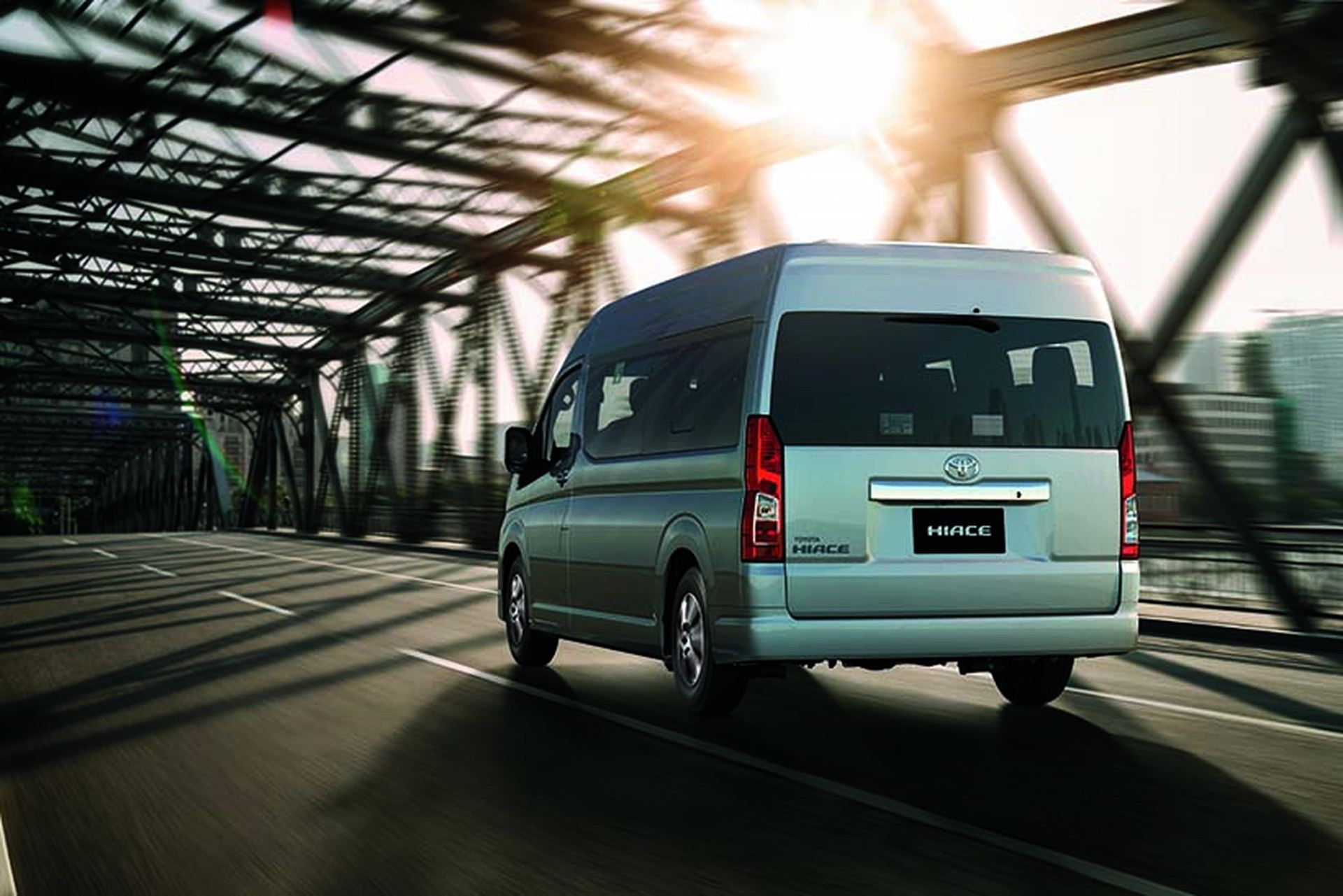

Hiace Exterior

With a globally respected reputation for reliability and endurance, the Hiace combines functionally elegant design with a complete range of practical and convenient onboard cabin appointments.

Whether you use it for business or pleasure, it offers every person aboard a comfortable ride for the duration of their journey. With a lineup that includes Standard and Long and Wide & Super Long body styles.

  • tmc_hia_2010_ga_800_01_tcm278-178636.jpg
  • tmc_hia_2010_ga_800_02_tcm278-178637.jpg
  • tmc_hia_2010_ga_800_03_tcm278-178638.jpg
  • tmc_hia_2010_ga_800_04_tcm278-178639.jpg
  • tmc_hia_2010_ga_800_05_tcm278-178640.jpg
  • tmc_hia_2010_ga_800_06_tcm278-178641.jpg
  • tmc_hia_2010_ga_800_07_tcm278-178642.jpg
  • tmc_hia_2010_ga_800_08_tcm278-178643.jpg
  • tmc_hia_2010_ga_800_09_tcm278-178644.jpg
  • tmc_hia_2010_ga_800_10_tcm278-178645.jpg
  • tmc_hia_2010_ga_800_11_tcm278-178646.jpg
  • tmc_hia_2010_ga_800_12_tcm278-178647.jpg
  • HH1205-F.jpg
  • HH1214-F.jpg
  • HH1301-F.jpg
  • HH1307-F.jpg
  • HH1311-F.jpg
  • HH1405-F.jpg

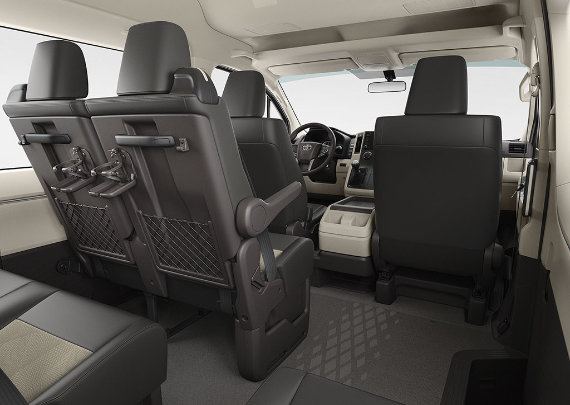

Hiace Interior

Enhanced Cargo Carrying Capacity

The wide & Super Long body and Standard & Long body bring enhanced load carrying capacity to your daily workflow. With a flush- to-floor rear bumper and wide, sliding side door that facilitate manual loading and unloading, they can accommodate a standard cargo palette for direct loading and unloading with a forklift. Whichever body you choose, you get efficiency and cargo-carrying capacity that take big jobs in stride.

  • tmc_hia_2010_ga_800_16_tcm278-178651.jpg
  • tmc_hia_2010_ga_800_17_tcm278-178652.jpg
  • tmc_hia_2010_ga_800_18_tcm278-178653.jpg
  • tmc_hia_2010_ga_800_19_tcm278-178654.jpg
  • tmc_hia_2010_ga_800_20_tcm278-178655.jpg
  • tmc_hia_2011_ga_800_13_tcm278-209230.jpg
  • tmc_hia_2011_ga_800_14_tcm278-209231.jpg
  • tmc_hia_2011_ga_800_15_tcm278-209232.jpg

Hiace Color Chart

  • 058 White
  • 1E7 Silver Met
  • 599 Lt. Yellow
  • 8P4 Dark Blue Mica Met

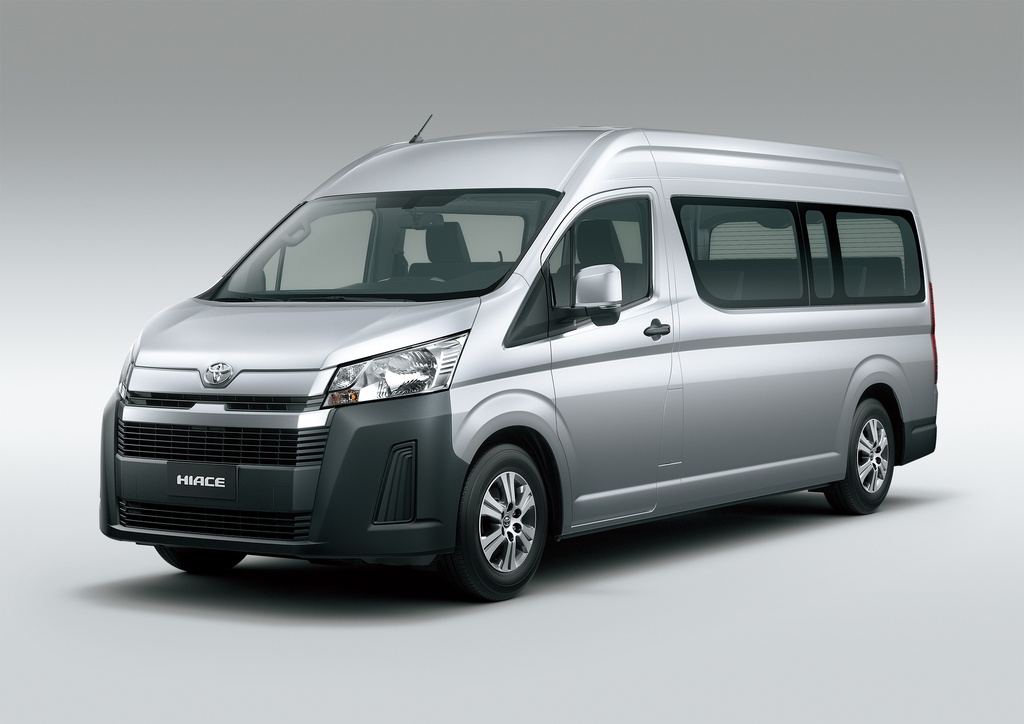

Hiace Commuter Specifications

SPECIFICATIONS High Roof Standard Roof
DIMENSIONS & WEIGHT Overall Length (mm) 5380 4695
Width (mm) 1880 1695
Height (mm) 2285 1980
Wheelbase (mm) 3110 2570
Gross Vehicle Weight (kg) 3200 to 3300 2800
Tread Front (mm) 1655 1470
Rear (mm) 1650 1465
Interior Length (mm) 4205 3770
Width (mm) 1695 1545
Height (mm) 1565 1335
Ground Clearance (mm) 185 185
Seating Capacity persons 15 12
ENGINE Type 3.0-liter Diesel (5L-E) 3.0-liter Diesel (5L-E)
Num. of Cylinders 4 in-line 4 in-line
Displacement cc 2986 2986
Max. Output (kW/rpm) 68 / 4000 68 / 4000
Max. Torque (Nm/rpm) 197 / 2200 197 / 2200
CHASSIS Transmission Type 5-speed MT 5-speed MT
BRAKES & SUSPENSION Brake Type Front Discs Discs
Rear Drums Drums
Suspension Type Front Double Wishbone Double Wishbone
Rear Leaf Springs Leaf Springs
EXTERIOR Tire Size 195R15C 195R15C
INTERIOR Air Conditioning Front and Rear Front and Rear

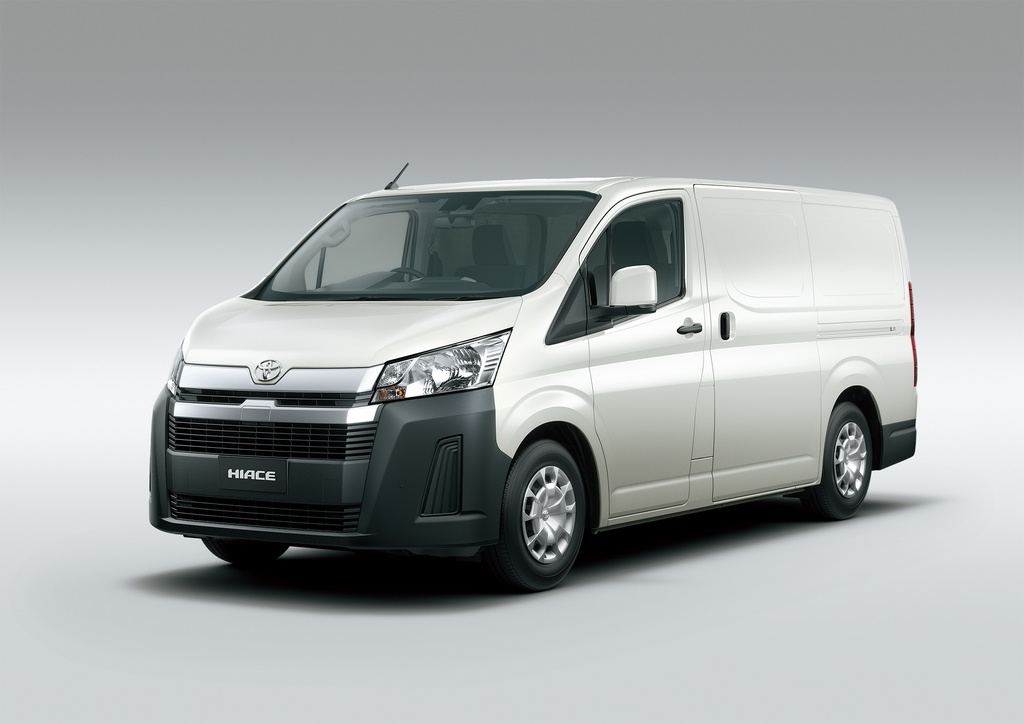

Hiace Van Specifications

SPECIFICATIONS High Roof Standard Roof
DIMENSIONS & WEIGHT Overall Length (mm) 5380 4695
Width (mm) 1880 1695
Height (mm) 2285 1980
Wheelbase (mm) 3110 2570
Gross Vehicle Weight (kg) 3200 2800
Tread Front (mm) 1655 1470
Rear (mm) 1650 1465
Cargo Space Floor Length (mm) 3470 1960
Width (mm) 1730 1545
Height (mm) 1635 1335
Ground Clearance (mm) 195 195
Seating Capacity persons 3 (4) 3 (4)

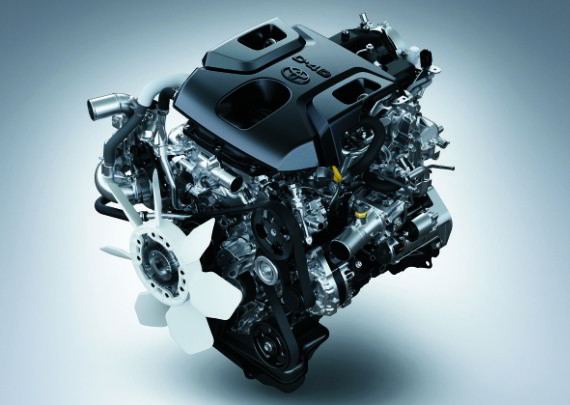

ENGINE Type 2.5-liter Diesel (2KD-FTV) 3.0-liter Diesel (5L-E)
Num. of Cylinders 4 in-line 4 in-line
Displacement cc 2494 2986
Max. Output (kW/rpm) 75 / 3600 68 / 4000
Max. Torque (Nm/rpm) 260 / 1600 to 2400 197 / 2200
CHASSIS Transmission Type 5-speed MT 5-speed MT
BRAKES & SUSPENSION Brake Type Front Discs Discs
Rear Drums Drums
Suspension Type Front Double Wishbone Double Wishbone
Rear Leaf Springs Leaf Springs
EXTERIOR Tire Size 195R15C 195R15C
INTERIOR Air Conditioning Yes Yes
