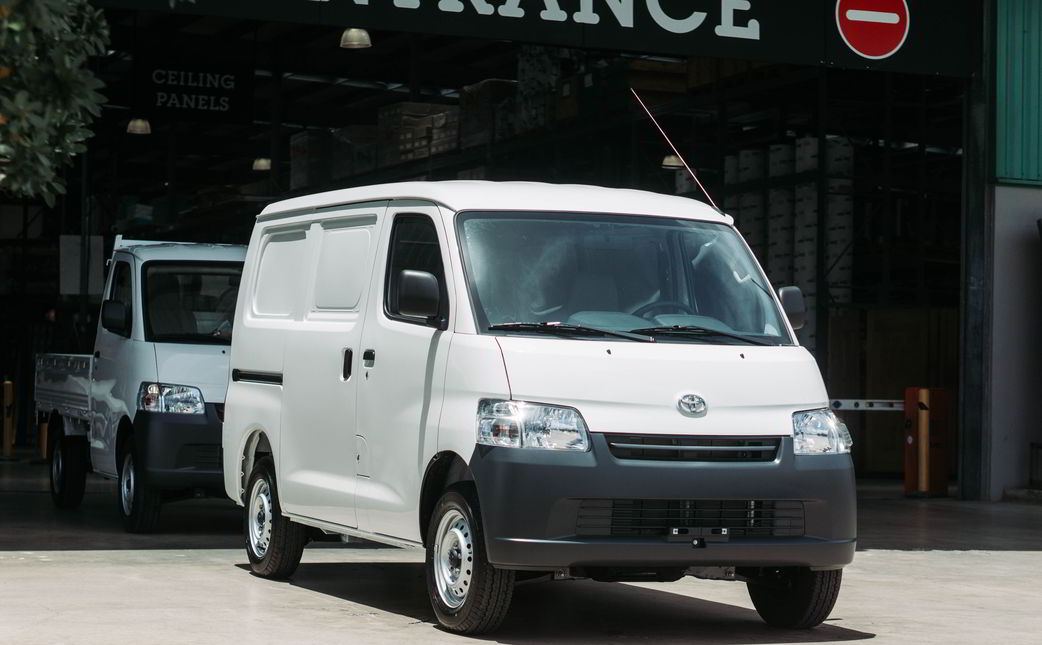

THE ALL-NEW TOYOTA LITE ACE
Practical, Reliable, and Economical
The Compact Commercial Vehicle with easy loading and unloading, versatile and large carrying capability. Stable drivability even when loaded and providing safety even in the event of a collision. Excellent quality, low running costs with good fuel economy and affordable maintenance.

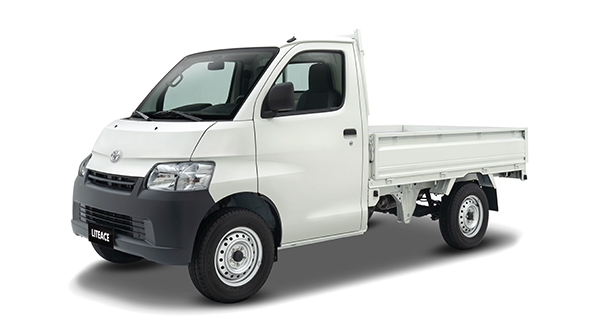

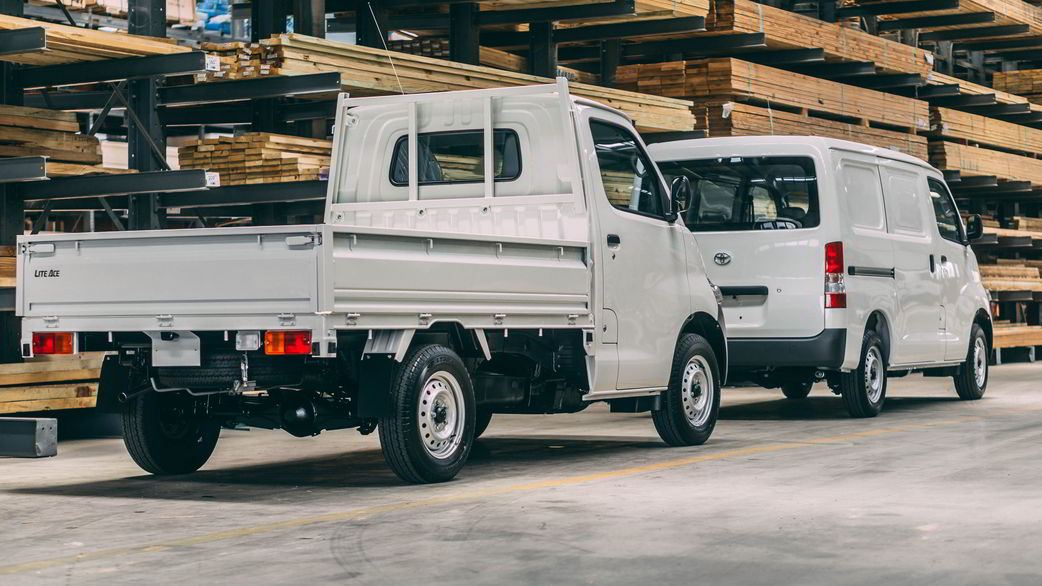

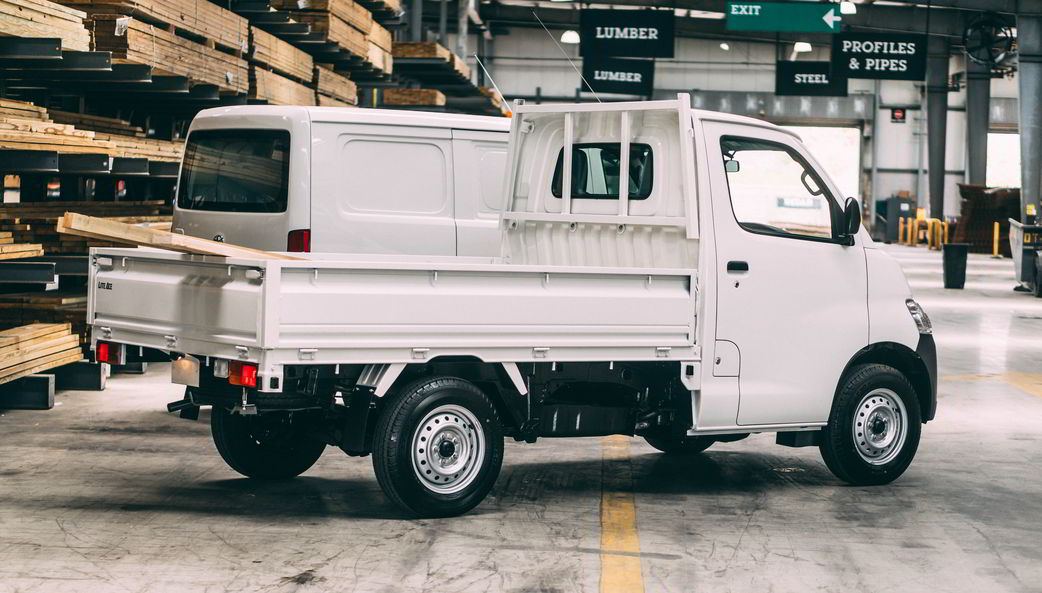

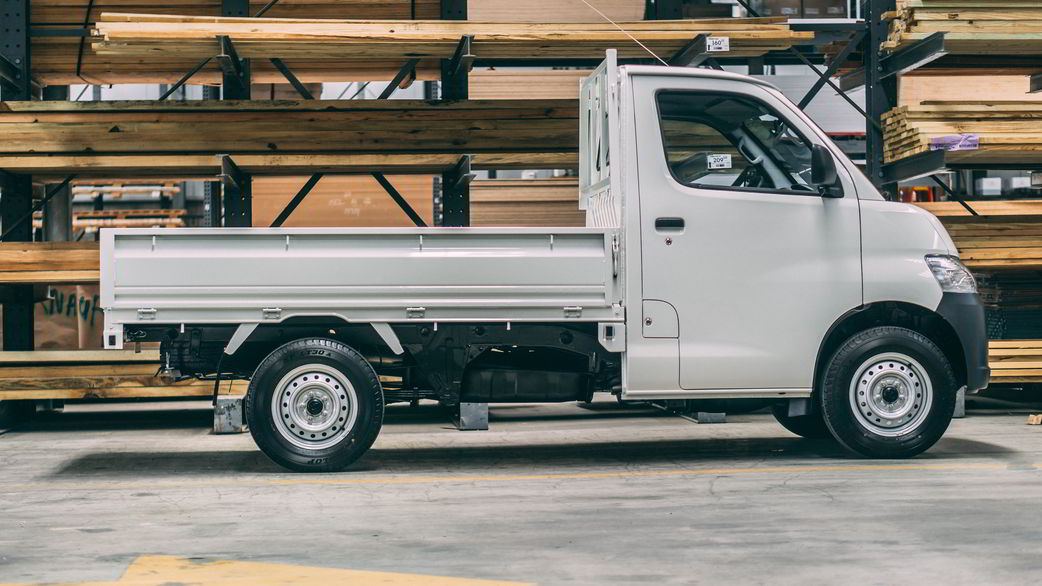

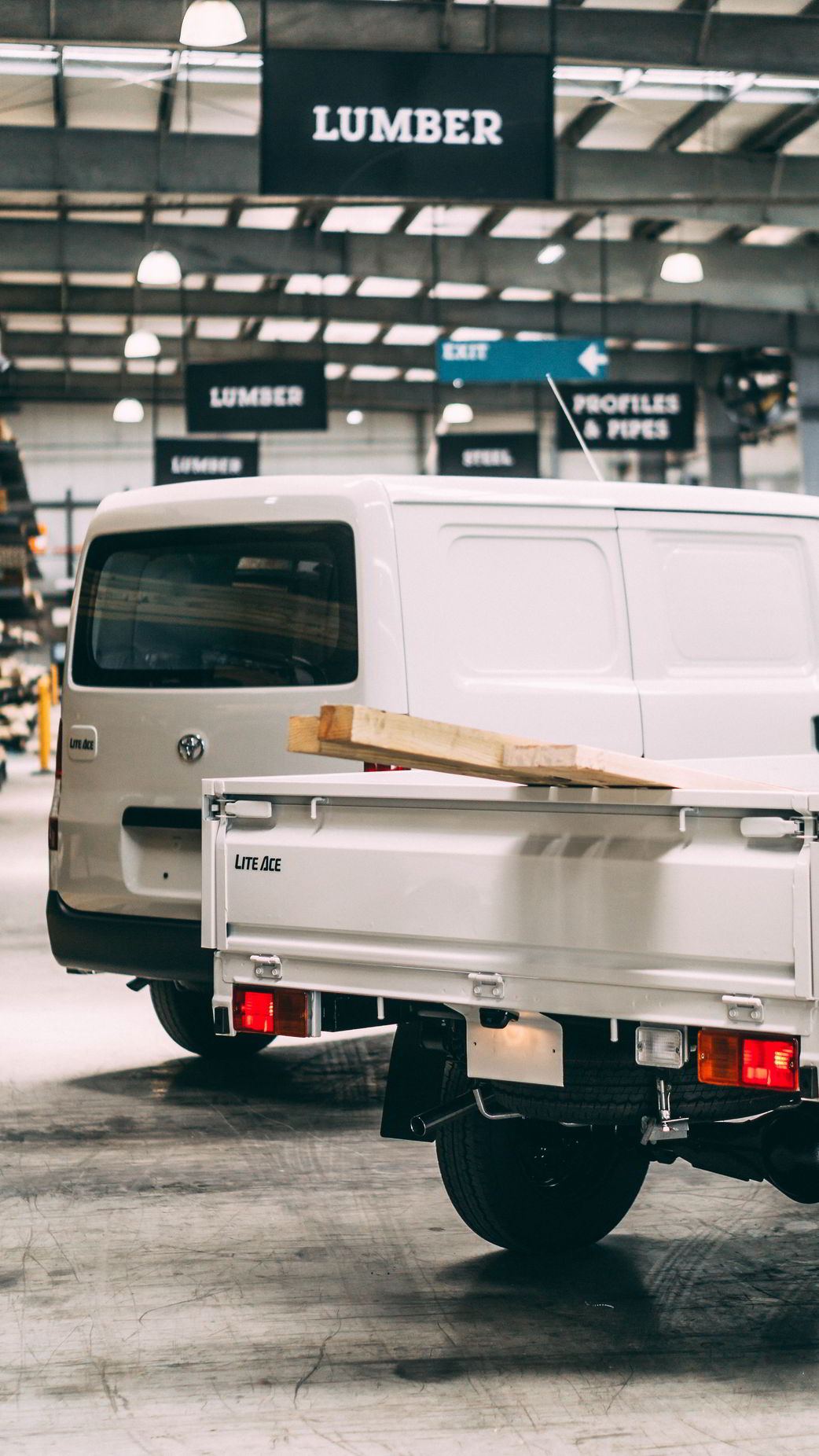

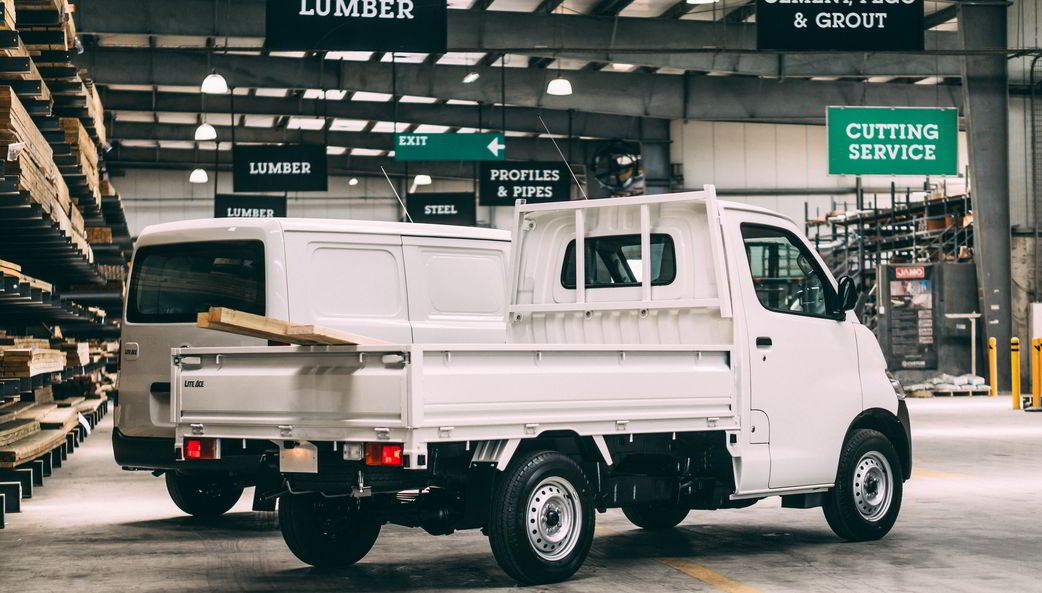

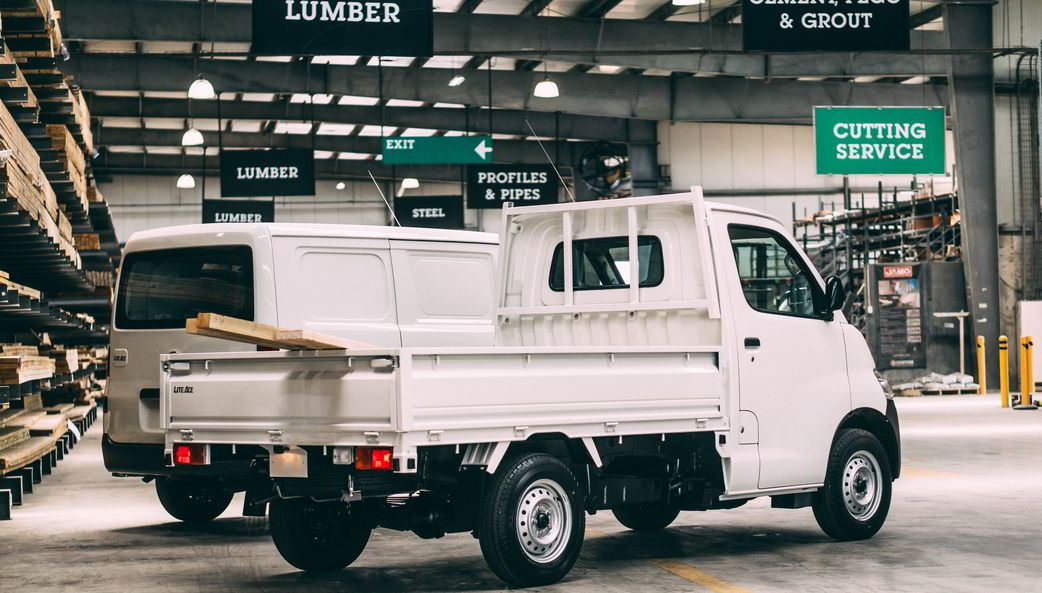

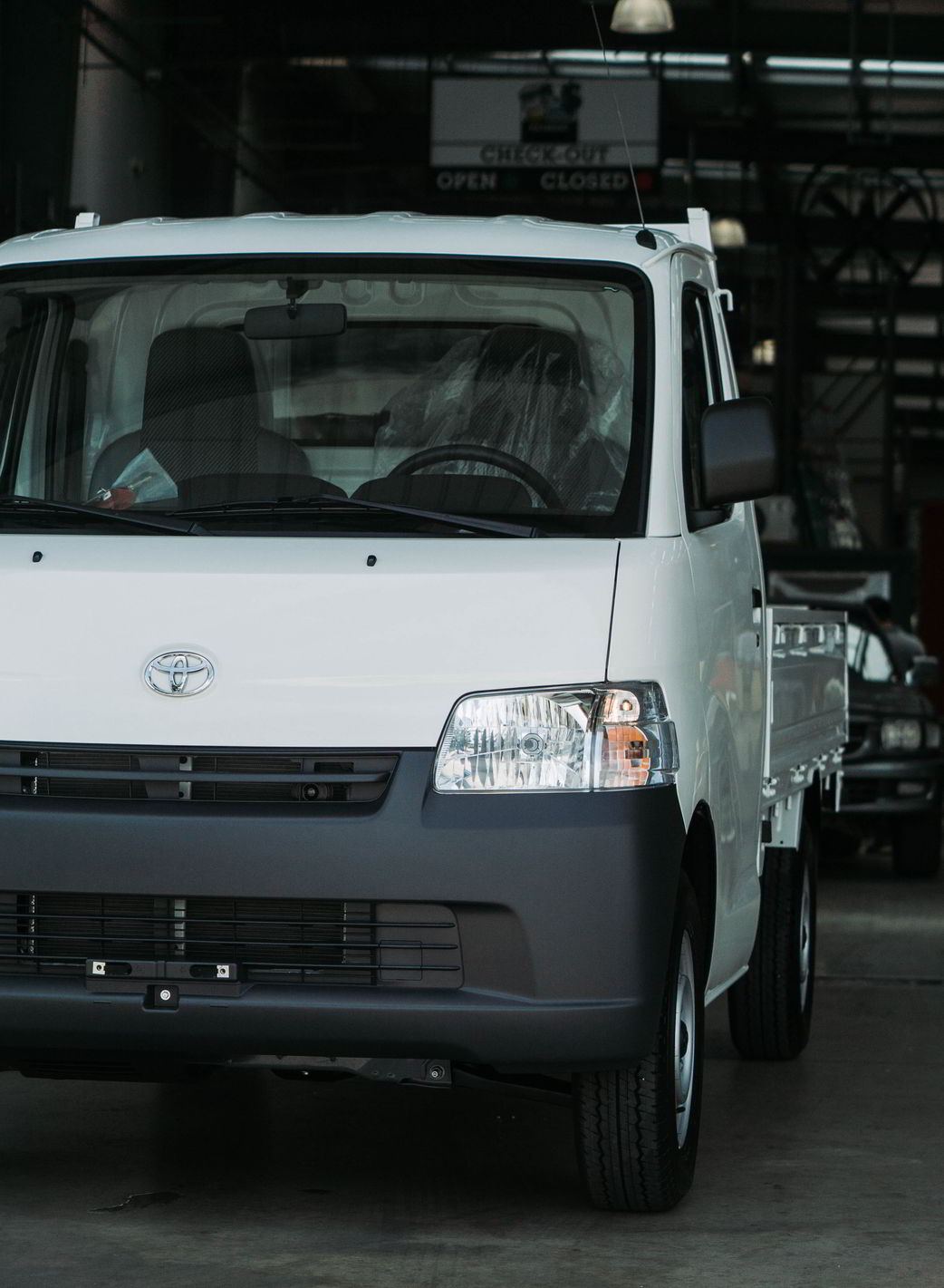

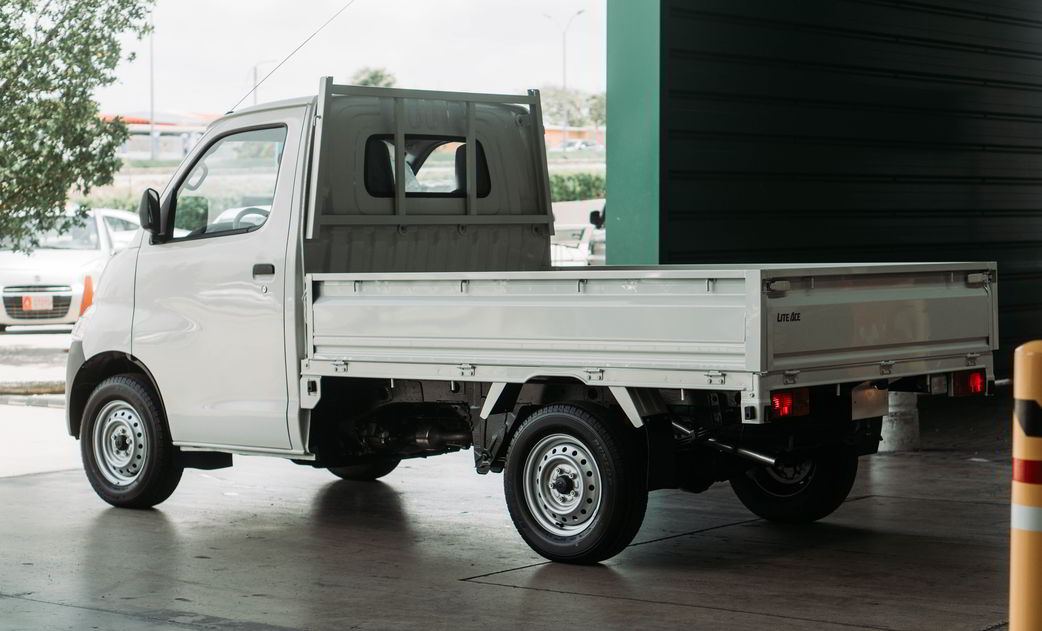

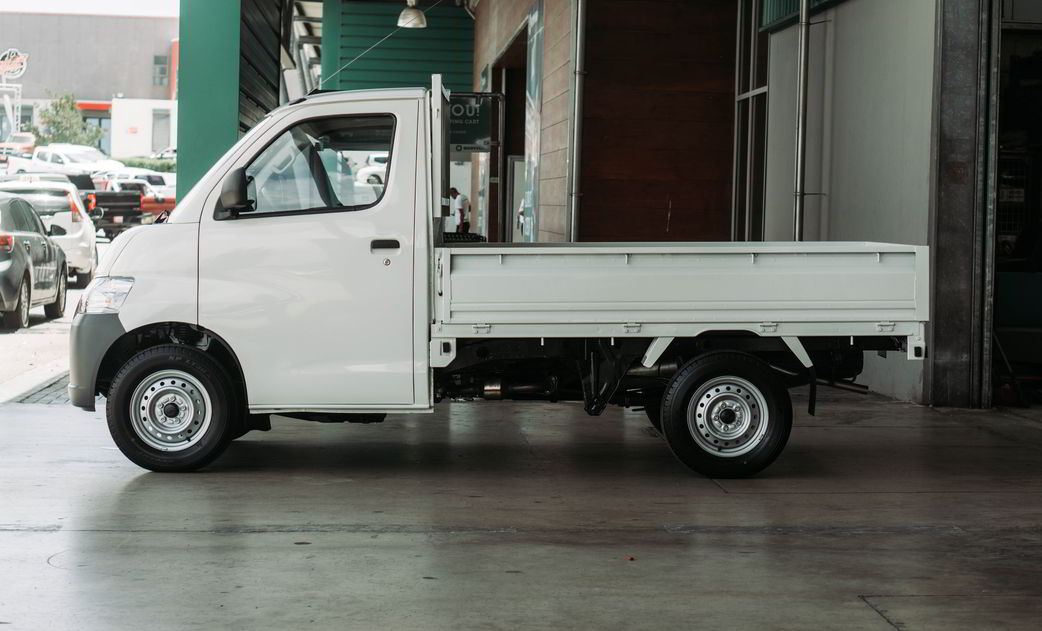

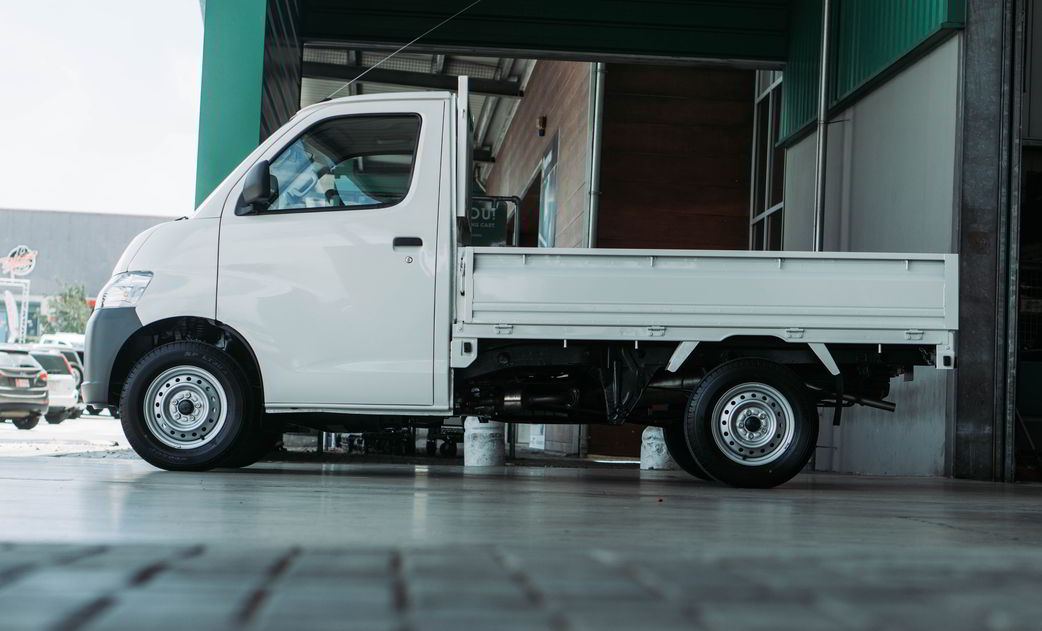

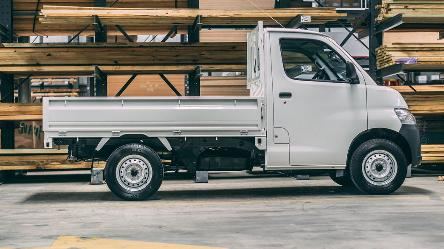

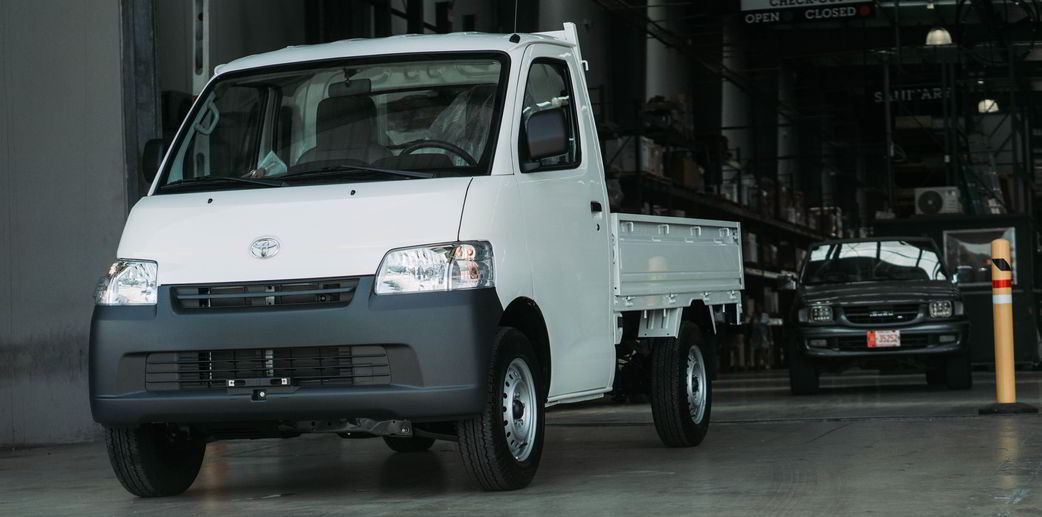

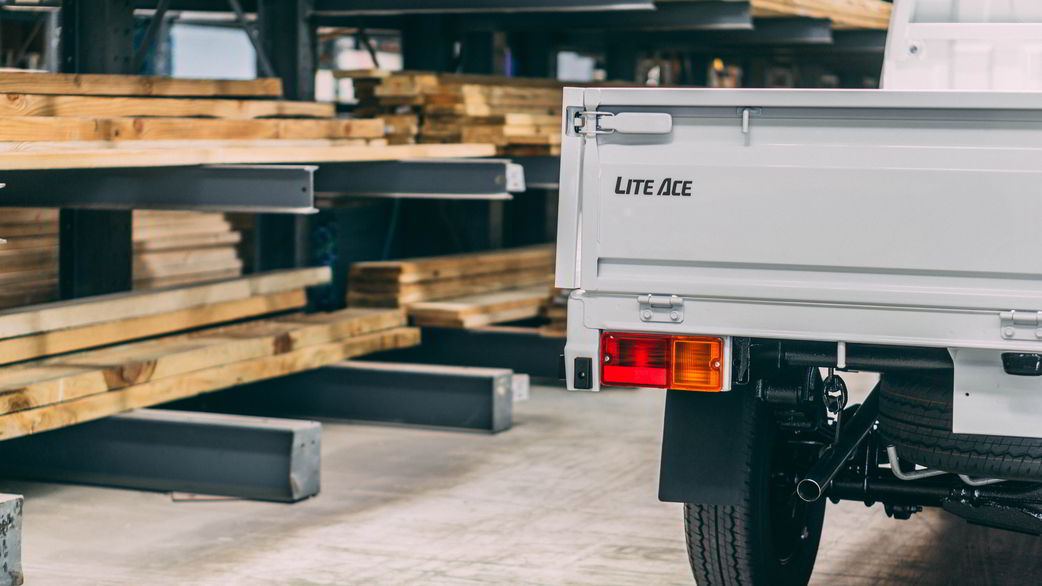

Lite Ace - Pick up
Overall Info:
- Length / GVM (mm) 4045
- Width / GVM (mm) 1665
- Height / CM (mm) 1930
- Wheelbase GVM (mm) 2650
- Tread Front / GVM (mm) 1460 / Rear / GVM (mm) 1440
- Overhang Front / GVM (mm) 585 / Rear / GVM (mm) 810
- Min. Running Ground Clearance (W/O axle, 1 passenger (mm)) 180
- Angle of Approach (Degrees) 34
- Angle of Departure (Degrees) 25
- Seating Capacity Persons 2
- Capacity (m3) Gross Vehicle Weight Total (Others: kg) 2000
- Curb Weight Total Min. Options (kg) 1220 Total Max. Options (kg) 1220
- Fuel Tank Capacity Total (L) 43
Engine
- Engine Model Code 2NR-VE
- No. of Cyls. & Arrangement > 4 cylinders, in-line type
- Valve Mechanism > 16 Valve DOHC Dual VVT-i
- Bore x Stroke (mm) 72.5 x 90.6
- Displacement (cm 3) 1496
- Compression Ratio 11.5
- Ignition System TRANSISTORIZE
- Fuel System: Fuel injection
- Fuel Type: Petrol
- Recommended Octane Rating: 91 or more
- Max. Output (kW) 72 (RPM) 6000
- Max. Torque (N·m) 134 (RPM) 440
Performance
- Max. Speed (km/h) 145
- Min. Turning Radius Tire (m) 4.9 Body (m) 5.2
- Drive Train
- Transmission Model Code D07K Type 4AT
- Brake Type Front > ventilated disc brake
- Brake Type Rear> drum brake
- Steering System Gear Type. Rack & pinion
- Power Steering Type- Electric

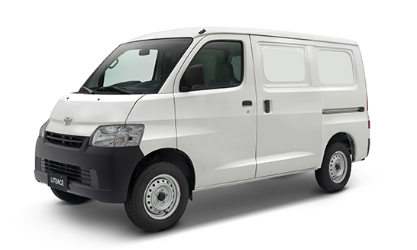

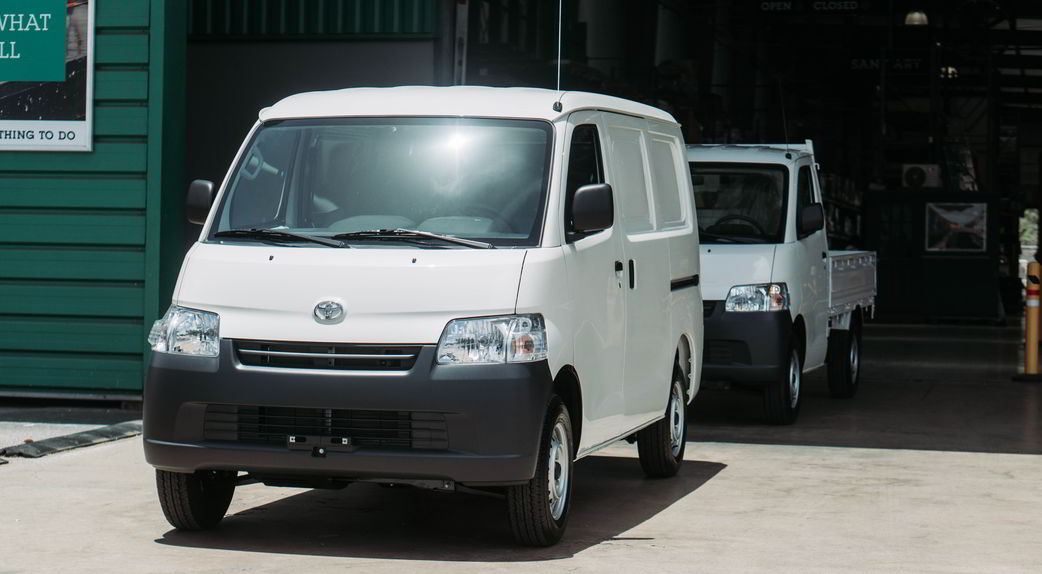

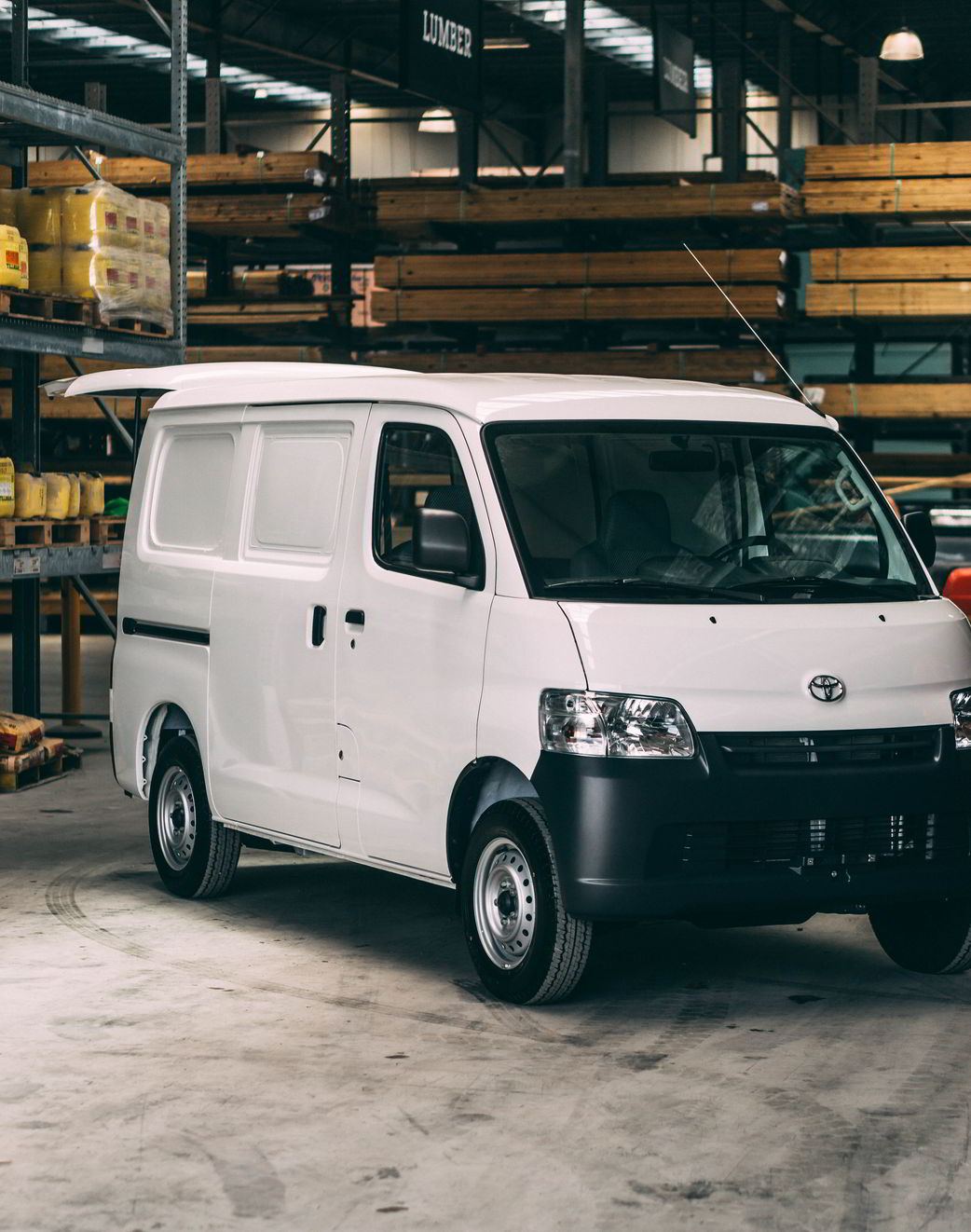

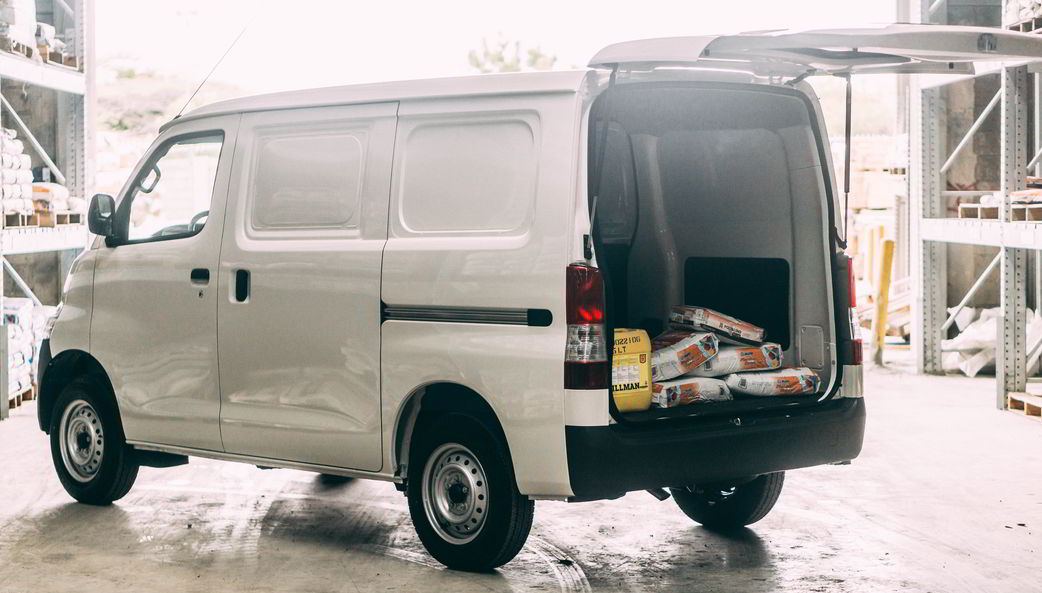

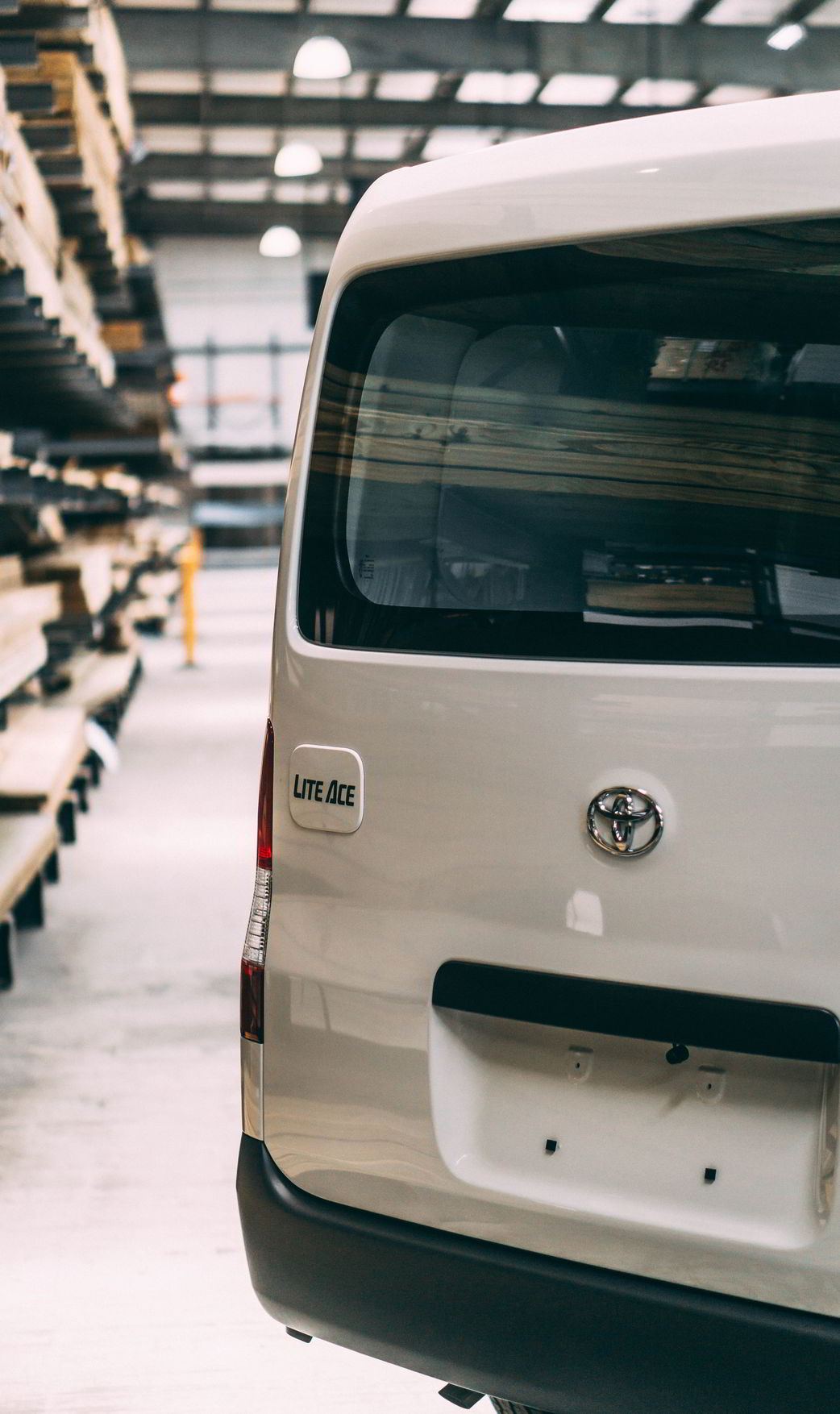

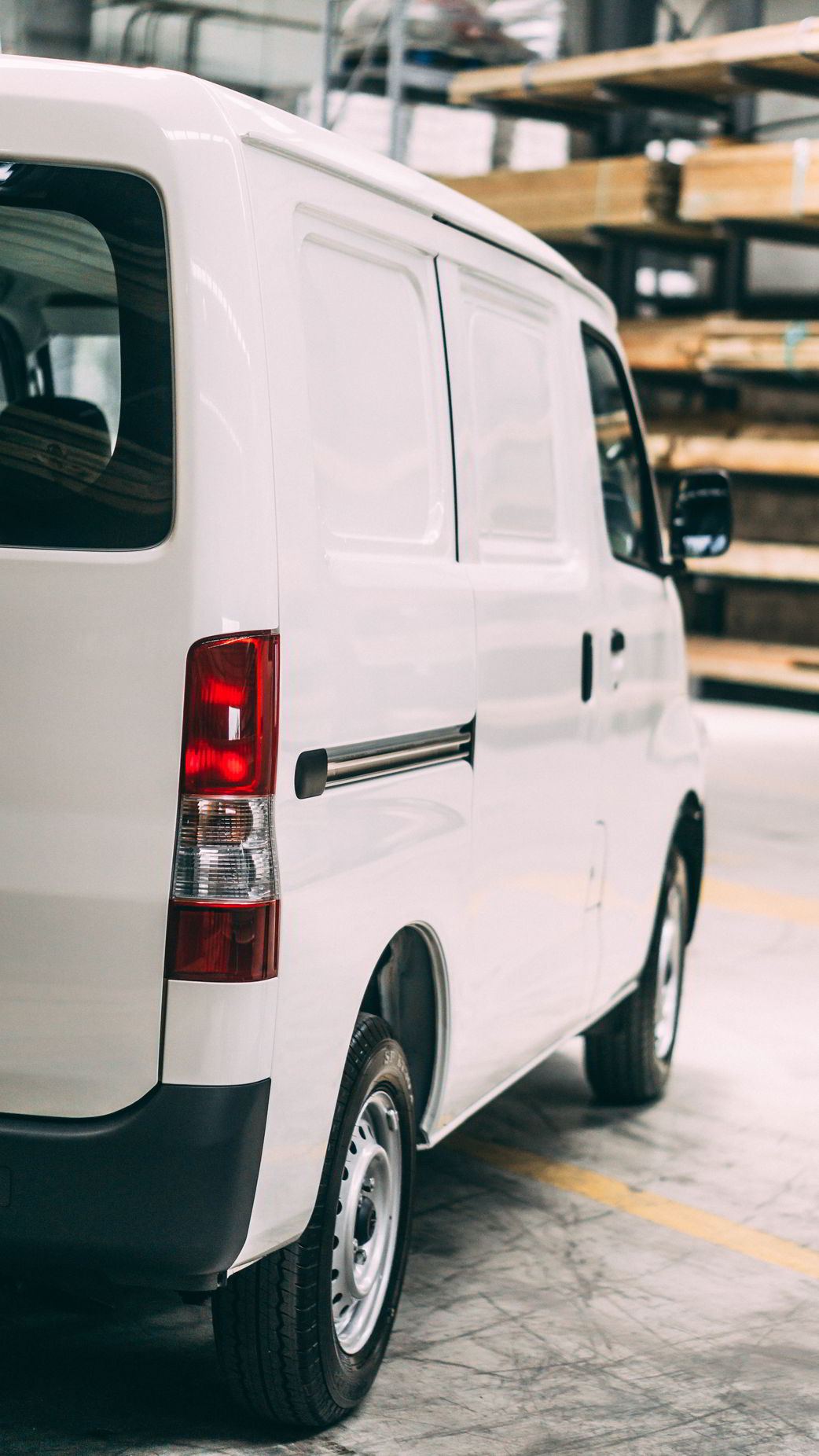

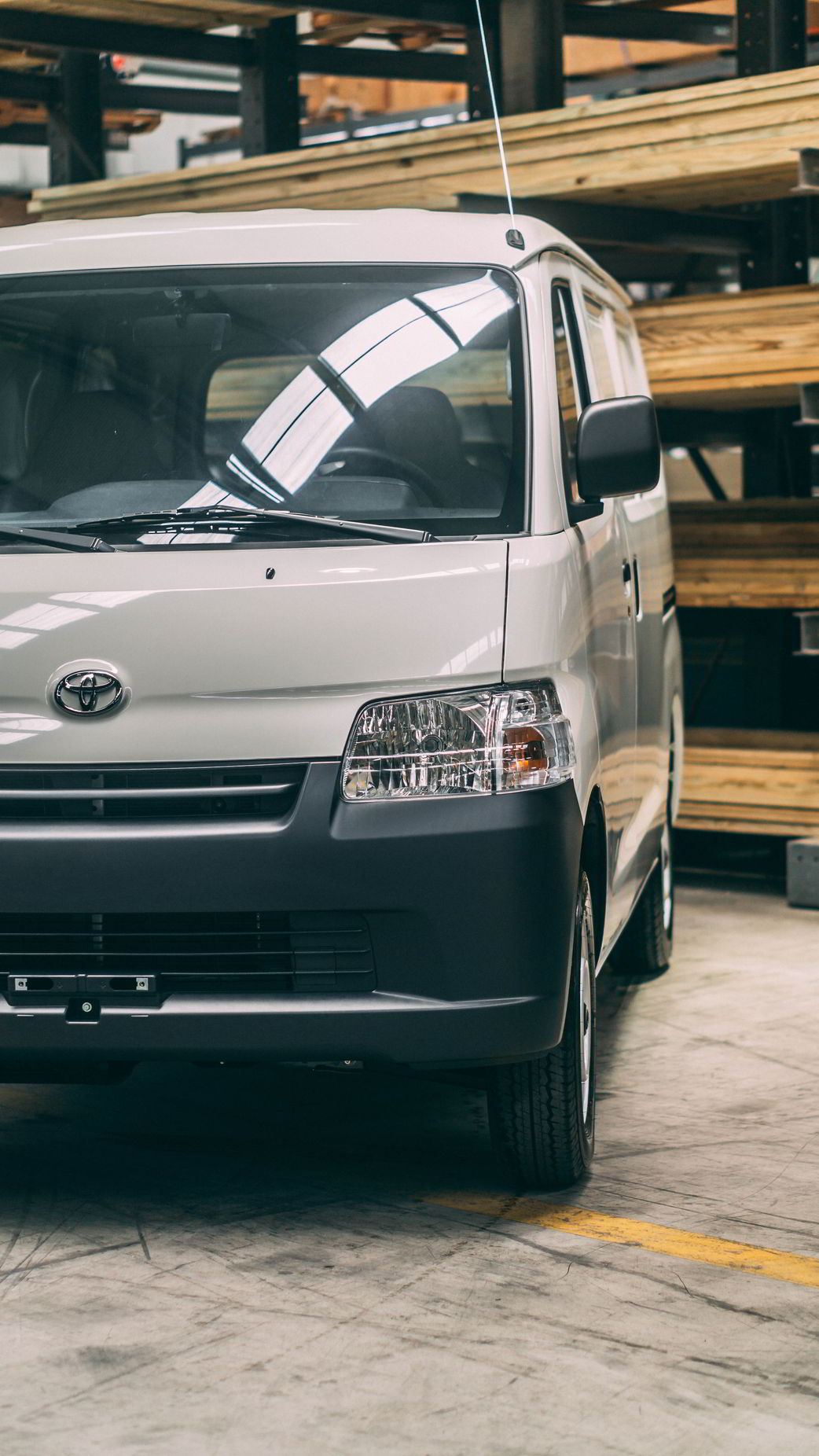

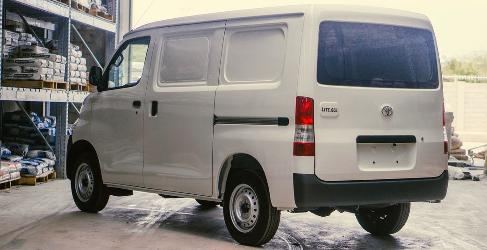

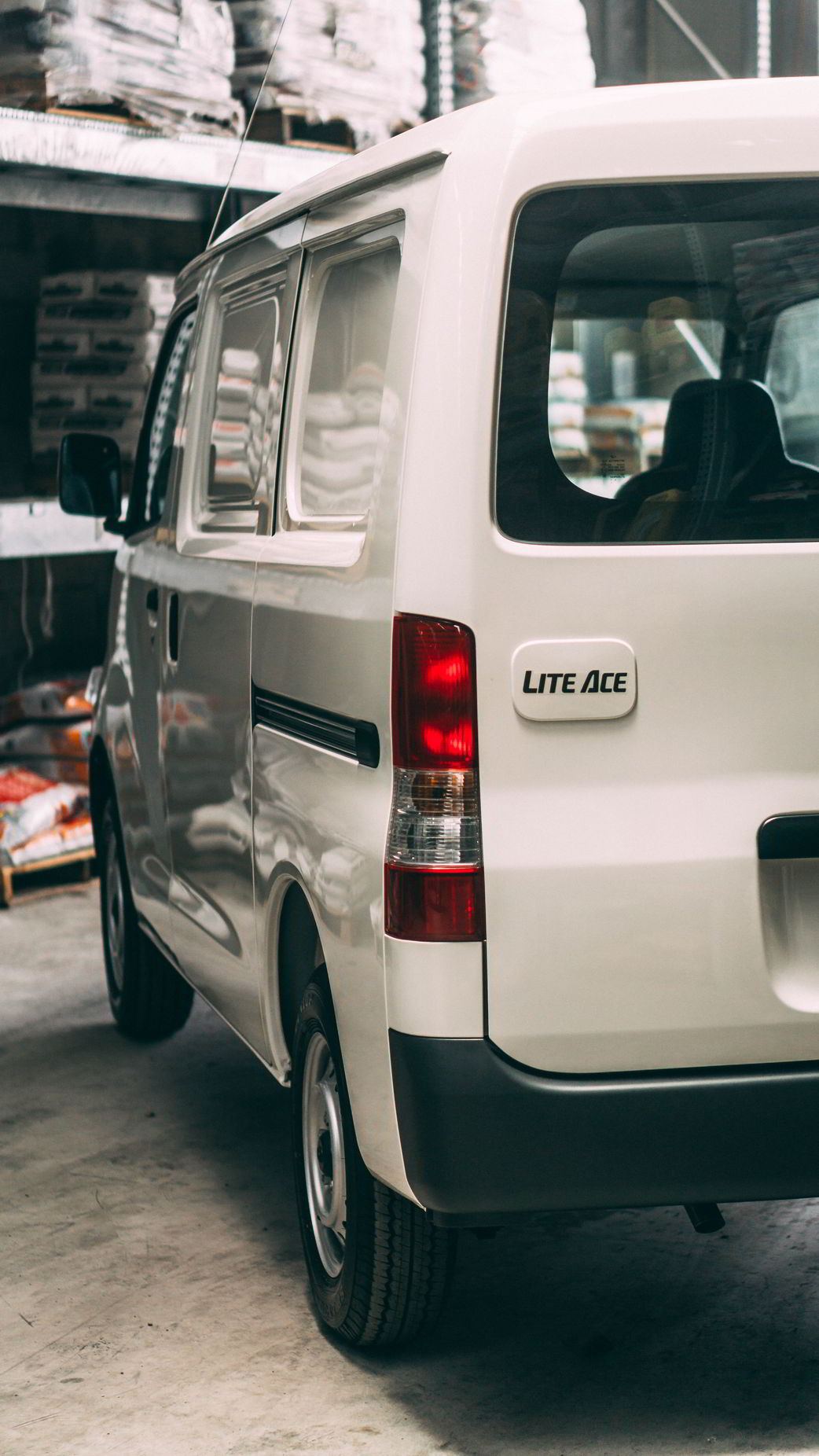

Lite Ace - Van
Overall Info:
- Length / GVM (mm) 4045
- Width / GVM (mm) 1665
- Height / CM (mm) 1930
- Wheelbase GVM (mm) 2650
- Tread Front / GVM (mm) 1460 / Rear / GVM (mm) 1440
- Overhang Front / GVM (mm) 585 / Rear / GVM (mm) 810
- Min. Running Ground Clearance (W/O axle, 1 passenger (mm)) 180
- Angle of Approach (Degrees) 34
- Angle of Departure (Degrees) 25
- Seating Capacity Persons 2
- Capacity (m3) Gross Vehicle Weight Total (Others: kg) 2000
- Curb Weight Total Min. Options (kg) 1220 Total Max. Options (kg) 1220
- Fuel Tank Capacity Total (L) 43
Engine
- Engine Model Code 2NR-VE
- No. of Cyls. & Arrangement > 4 cylinders, in-line type
- Valve Mechanism > 16 Valve DOHC Dual VVT-i
- Bore x Stroke (mm) 72.5 x 90.6
- Displacement (cm 3) 1496
- Compression Ratio 11.5
- Ignition System TRANSISTORIZE
- Fuel System: Fuel injection
- Fuel Type: Petrol
- Recommended Octane Rating: 91 or more
- Max. Output (kW) 72 (RPM) 6000
- Max. Torque (N·m) 134 (RPM) 440
Performance
- Max. Speed (km/h) 145
- Min. Turning Radius Tire (m) 4.9 Body (m) 5.2
- Drive Train
- Transmission Model Code D07K Type 4AT
- Brake Type Front > ventilated disc brake
- Brake Type Rear> drum brake
- Steering System Gear Type. Rack & pinion
- Power Steering Type- Electric
Tag line / Summary

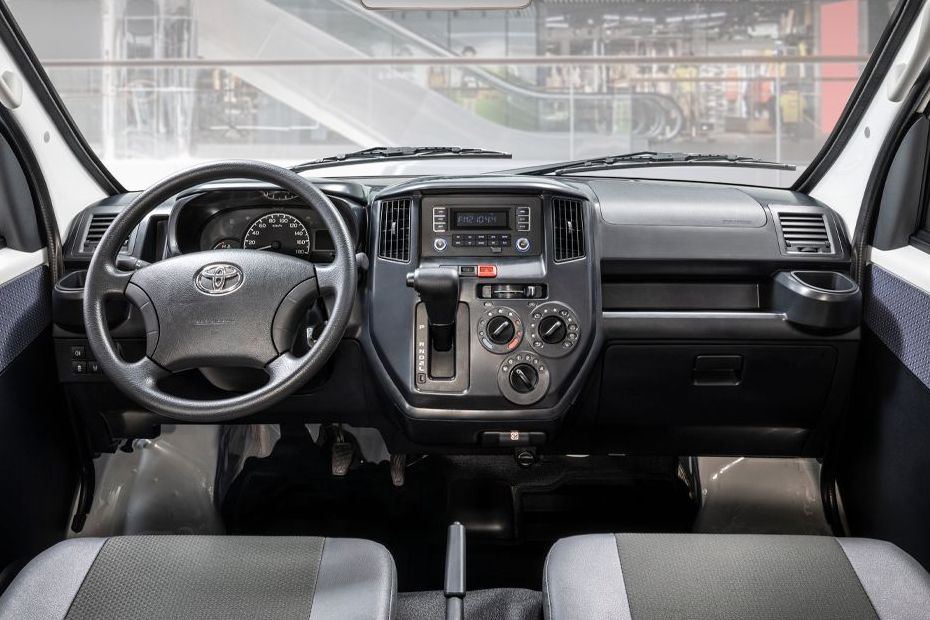

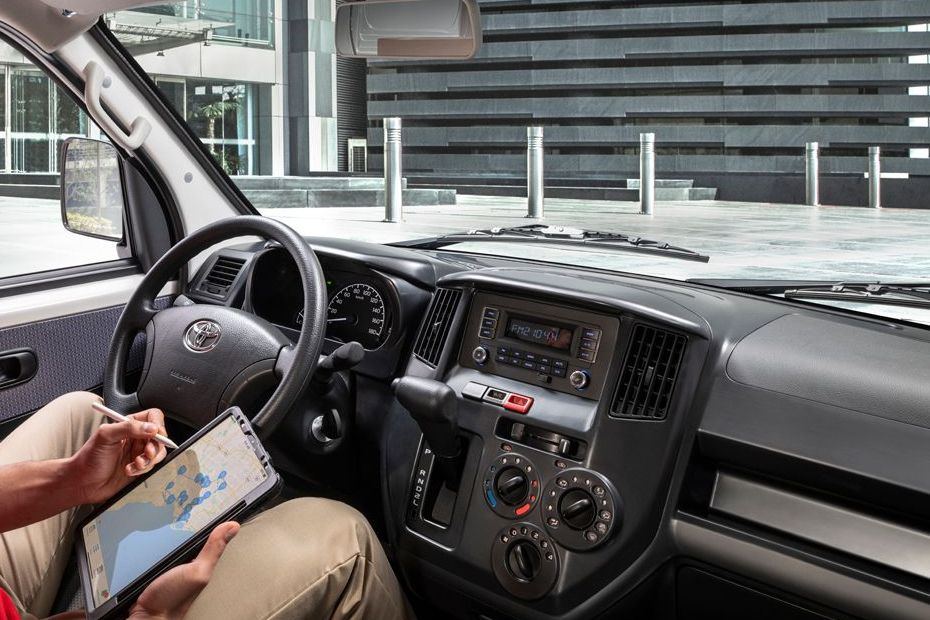

The vehicle displayed in the above image has an automatic transmission which varies from the available vehicle in the region with manual transmission.

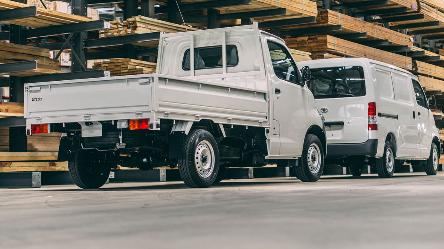

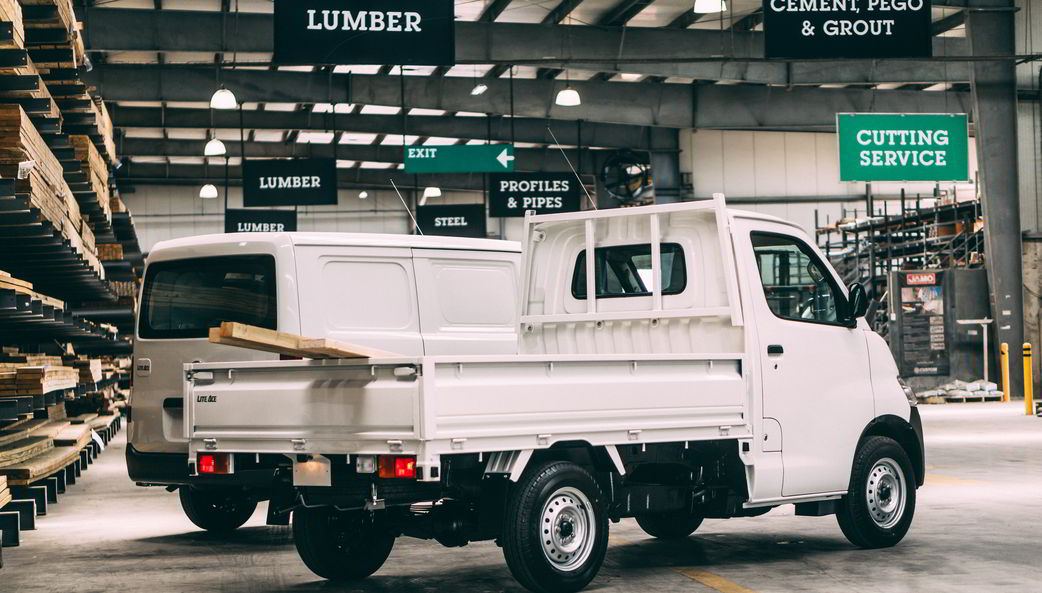

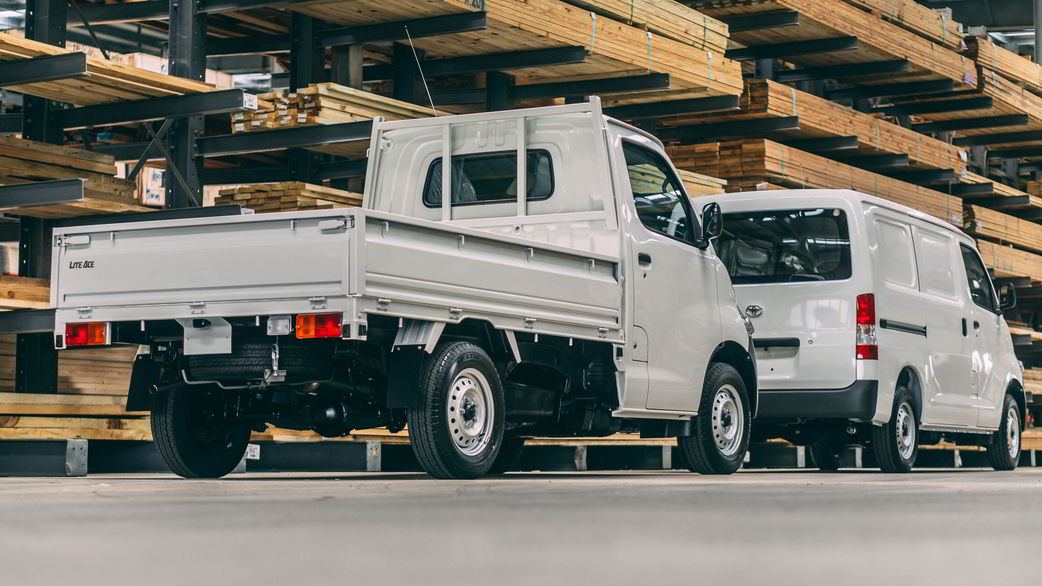

The Compact Commercial Vehicle

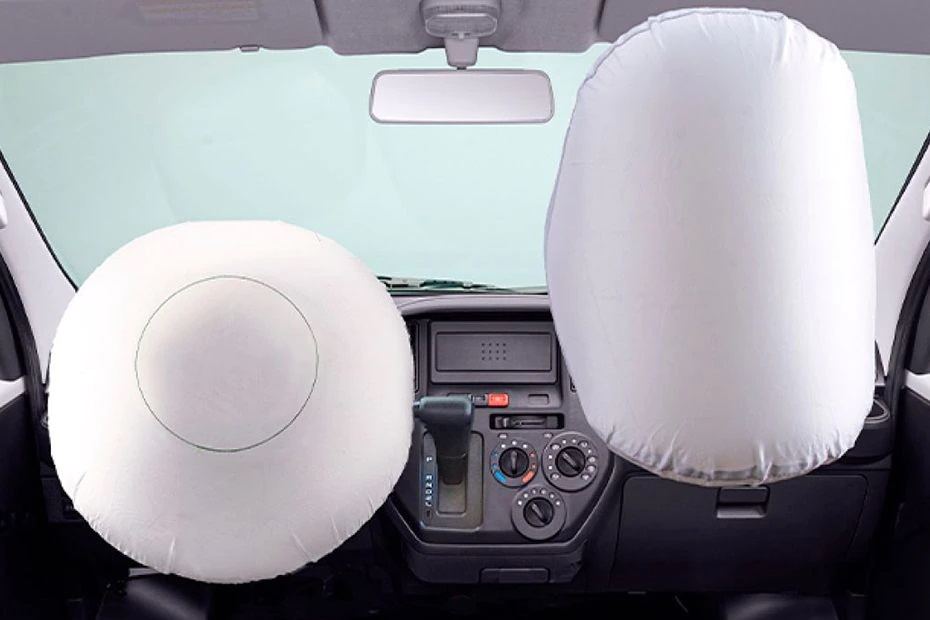

SAFETY
Comprehensive safety equipment
All vehicles are equipped with safety equipment such as driver and passenger seat SRS airbags and ABS as standard
FUNCTION
Functional and simple square body in semi-cab style
- Optimal front-rear weight balance and deck space have been provided.
- Long wheelbase enhances both straight-line stability and ride comfort.
INTERIOR (Window Van)
Deck space offering both ample capacity and easy usability
- Ample cabin space (max. 8 occupants) is provided in a compact body.
- Large square openings allow smooth rear seat accessibility.

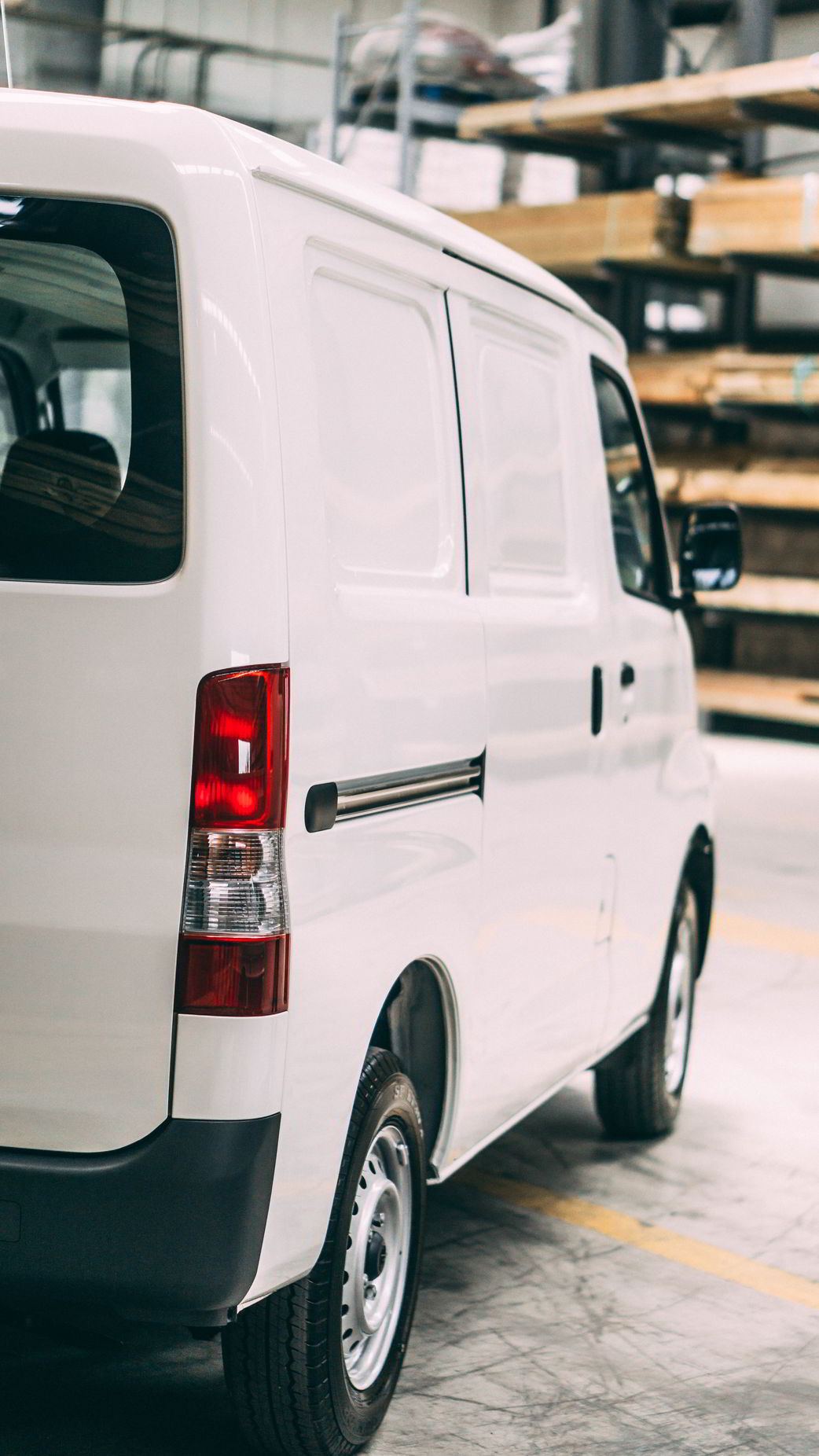

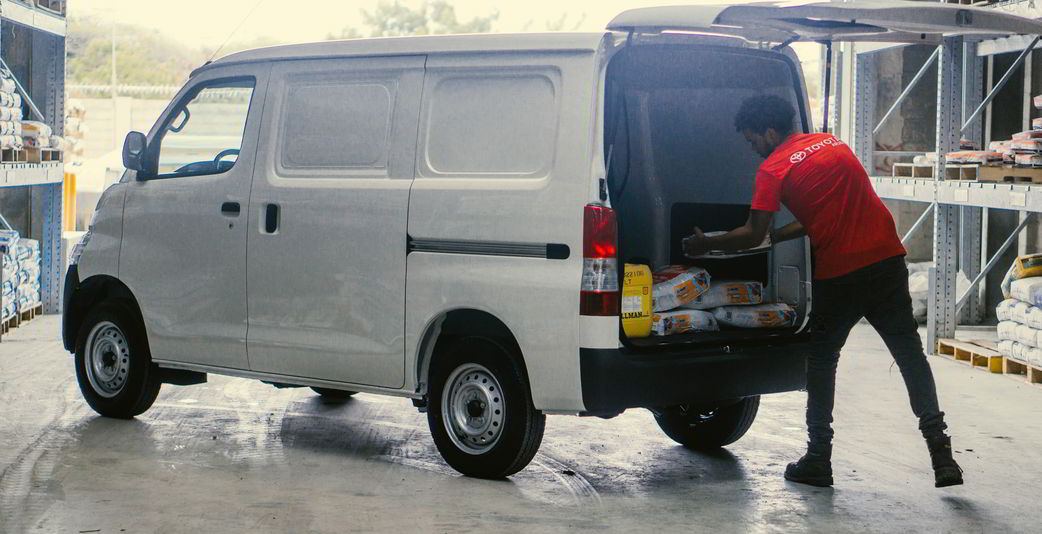

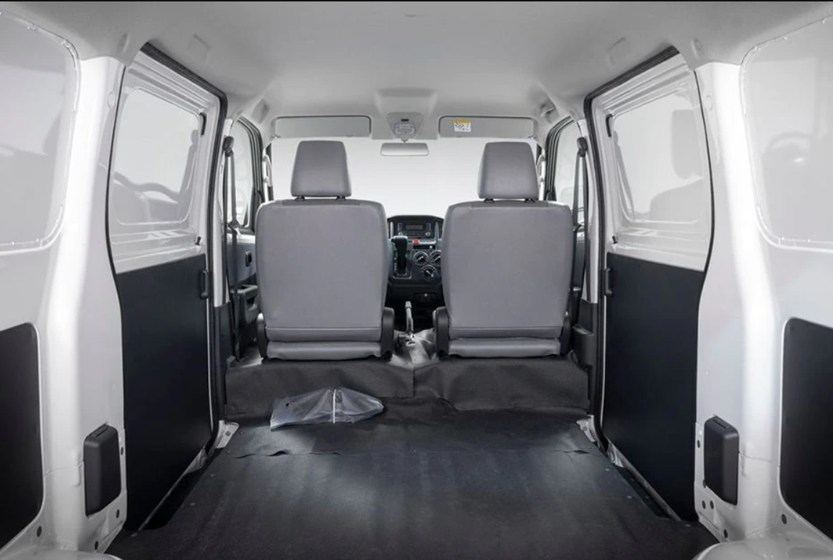

INTERIOR (Panel Van)
Cargo space offering both ample capacity and easy usability
- Ample cargo capacity is provided in a compact body.
- Large square openings allow easy loading/unloading of large items.
- Dual sliding doors allow flexible loading/unloading to suit the situation
PERFORMANCE

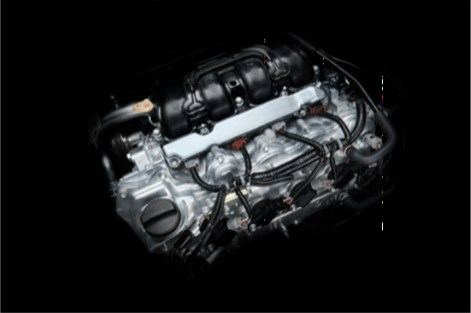

Powerful, economical, and clean engine newly adopted for compact commercial vehicles
- Ample power, low fuel consumption and low emissions
−Dual VVT-I has been adopted to thoroughly enhance combustion efficiency and reduce friction of engine components, helping to deliver excellent fuel economy and low emissions. - Stable drivability from low speeds to high speeds
−Ample torque is provided in the low/mid-speed range, and nimble acceleration in the high-speed range. - Engine positioned under the front seats
−Ideal front-rear weight balance provides stable drivability
